Double Cut Carbide Burrs – Inverted Cone Shape – 1/4″ Shank

B209

–

Download PDF

Range

Features

Application

Specification

Resources

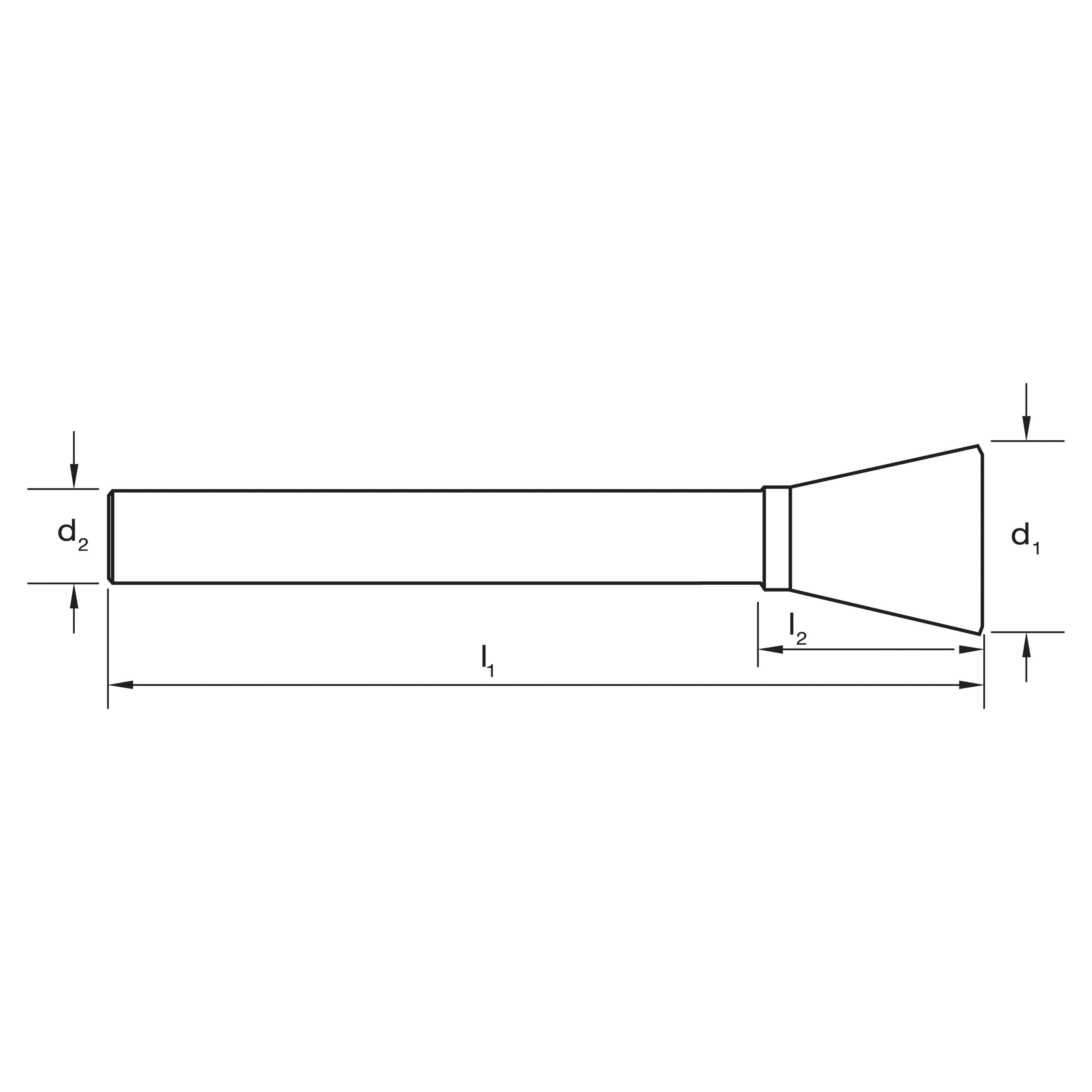

Item #

Diameter d1 (mm)

Diameter d1 (inch)

Length l1 (mm)

Length l2 (mm)

Diameter d2 (mm)

Angle

RRP
(inc GST)

Info

B209SN100

6.40

1/4

10°

$57.00

B209SN200

9.60

3/8

2-1/8

3/8

1/4

13°

$82.00

B209SN400

12.70

1/2

2-1/2

1/2

1/4

28°

$115.00

B209SN420

3.20

1/8

1-1/2

1/8

14°

$29.95

B209SN510

6.40

1/4

1-3/4

1/4

1/8

10°

$48.95

B209SN600

15.90

5/8

2-1/2

3/4

1/4

18°

$155.00

B209SN700

19.10

3/4

2-5/8

5/8

1/4

30°

$169.00

Inverted Cone Shape Carbide Burs
The chisel tooth pattern not only minimises tool chatter but reduces the chip to a granular shape, in most materials.
Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125MPa	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190MPa	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250MPa	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270MPa	910MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300MPa	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180MPa	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275MPa	930MPa
P	8	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	300MPa	1010MPa
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350MPa	1180MPa
P	10	Steel - High alloy, cast & tool	Annealed	200MPa	680MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325MPa	1100MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200MPa	680MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240MPa	810MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180MPa	610MPa
M	14.2	Stainless Steel - Duplex		250MPa	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250MPa	840MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180MPa	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260MPa	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160MPa	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250MPa	840MPa
K	19	Cast Iron, Malleable - Ferritic		130MPa	460MPa
K	20	Cast Iron, Malleable - Pearlitic		230MPa	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatabl		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	25	Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatabl		130HB	460MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
N	29	Non-metallic - Thermosetting & fiber-reinforced plastics
N	30	Non-metallic - Hard rubber, wood etc.
S	31	High temperature alloys - Fe based	Annealed	200HB	680MPa
S	32	High temperature alloys - Fe based	Age Hardened	280HB	950MPa
S	33	High temperature alloys - Ni / Co based	Annealed	250HB	840MPa
S	34	High temperature alloys - Ni / Co based	Age Hardened	350HB	1180MPa
S	35	High temperature alloys - Ni / Co based	Cast	320HB	1080MPa
S	36	Titanium & Titanium alloys - CP Titanium			400MPa
S	37.1	Titanium & Titanium alloys - Alpha alloys			860MPa
S	37.2	Titanium & Titanium alloys - Alpha / Beta alloys	Annealed		960MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.4	Titanium & Titanium alloys - Beta alloys	Annealed		830MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
H	38.1	Hardened steel	Hardened & Tempered	45
H	38.2	Hardened steel	Hardened & Tempered	55
H	39.1	Hardened steel	Hardened & Tempered	58HRC
H	39.2	Hardened steel	Hardened & Tempered	62HRC
H	40	Cast Iron - Chilled	Cast	400MPa	1350MPa
H	41	Cast Iron	Hardened & Tempered	55

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
