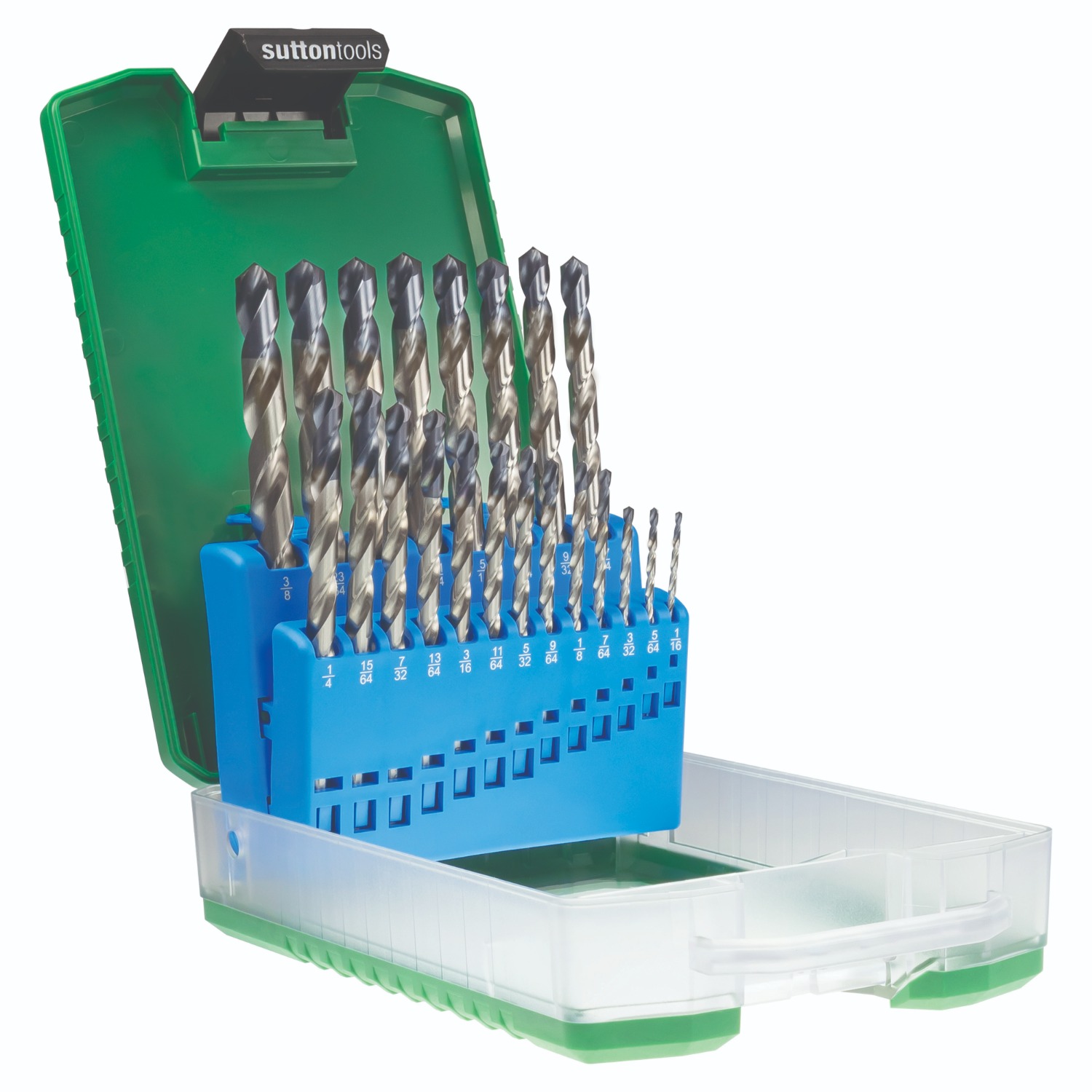

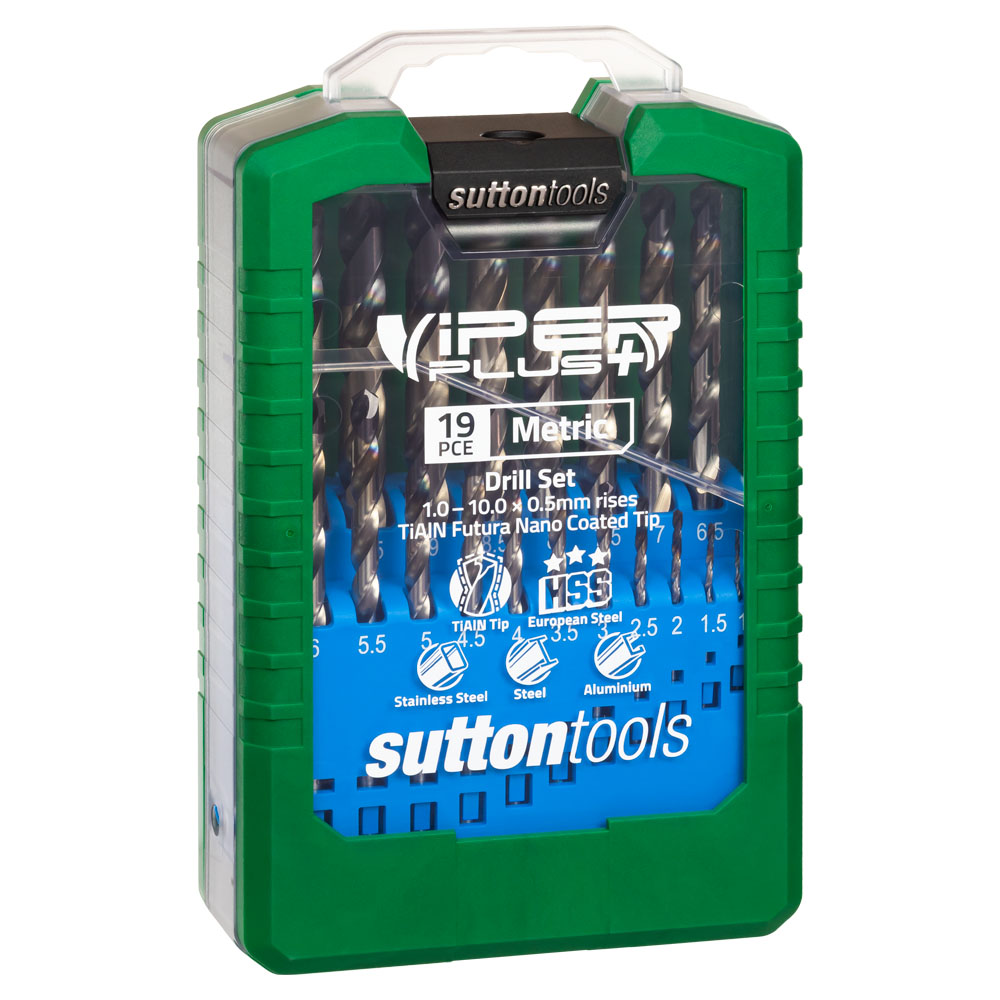

Jobber Drill Sets – Viper Plus
D179-SetsDrills bits with EXTRA bite. Viper Plus is an industrial quality drill bit designed for machine and hand held drilling in stainless steel, steel, aluminium, cast iron, brass, wood and plastic. Featuring a Futura Nano PVD coated tip – the latest generation coating for ultimate wear resistance and increased productivity. This drill bit has been independently tested to exceed 2X tool life compared to standard Viper drill bits.
Item #
Description
Pieces
Range
Case
RRP
(inc GST)
(inc GST)
Info
D179S2
S2
21
1/16 - 3/8 x 64ths
ABS
$175.00
- Pack Qty: 1
- Barcode: 9311963586175
- Order Multiple: 1
D179S2
D179S3
S3
29
1/16 - 1/2 x 64ths
ABS
$319.00
- Pack Qty: 1
- Barcode: 9311963579740
- Order Multiple: 1
D179S3
D179SM2
SM2
19
1.0 – 10.0mm x 0.5mm rises
ABS
$165.00
- Pack Qty: 1
- Barcode: 9311963586182
- Order Multiple: 1
D179SM2
D179SM3
SM3
25
1.0 – 13.0mm x 0.5mm rises
ABS
$299.00
- Pack Qty: 1
- Barcode: 9311963586199
- Order Multiple: 1
D179SM3
- Independently tested to exceed 2X greater tool life
- Futura Nano PVD coated tip for ultimate wear resistance
- Specialised coating allows higher cutting speeds and greater productivity
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- 118° split point tip minimises wandering when starting
ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
---|---|---|---|---|---|---|
P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125MPa | 440MPa | |
P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190MPa | 640MPa | |
P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250MPa | 840MPa | |
P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270MPa | 910MPa | |
P | 5 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Quenched & Tempered | 300MPa | 1010MPa | |
P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180MPa | 610MPa | |
P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275MPa | 930MPa | |
P | 8 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 300MPa | 1010MPa | |
P | 9 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 350MPa | 1180MPa | |
P | 10 | Steel - High alloy, cast & tool | Annealed | 200MPa | 680MPa | |
P | 11 | Steel - High alloy, cast & tool | Hardened & Tempered | 325MPa | 1100MPa | |
P | 12 | Steel - Corrosion resistant & cast - Ferritic / Martensitic | Annealed | 200MPa | 680MPa | |
P | 13 | Steel - Corrosion resistant & cast - Martensitic | Quenched & Tempered | 240MPa | 810MPa | |
M | 14.1 | Stainless Steel - Austenitic | Age Hardened | 180MPa | 610MPa | |
M | 14.2 | Stainless Steel - Duplex | 250MPa | 840MPa | ||
M | 14.3 | Stainless Steel - Precipitation Hardening | 250MPa | 840MPa | ||
K | 15 | Cast Iron, Grey (GG) - Ferritic / Pearlitic | 180MPa | 610MPa | ||
K | 16 | Cast Iron, Grey (GG) - Pearlitic | 260MPa | 880MPa | ||
K | 17 | Cast Iron, Nodular (GGG) - Ferritic | 160MPa | 570MPa | ||
K | 18 | Cast Iron, Nodular (GGG) - Pearlitic | 250MPa | 840MPa | ||
K | 19 | Cast Iron, Malleable - Ferritic | 130MPa | 460MPa | ||
K | 20 | Cast Iron, Malleable - Pearlitic | 230MPa | 780MPa | ||
N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75MPa | 270MPa | ||
N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90MPa | 320MPa | |
N | 25 | Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable | 130MPa | 460MPa | ||
N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110MPa | 390MPa | ||
N | 27 | Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) | 90MPa | 320MPa | ||
N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100MPa | 360MPa | ||
N | 29 | Non-metallic - Thermosetting & fiber-reinforced plastics | ||||
N | 30 | Non-metallic - Hard rubber, wood etc. | ||||
S | 31 | High temperature alloys - Fe based | Annealed | 200HB | 680MPa | |
S | 32 | High temperature alloys - Fe based | Age Hardened | 280HB | 950MPa | |
S | 33 | High temperature alloys - Ni / Co based | Annealed | 250HB | 840MPa | |
S | 34 | High temperature alloys - Ni / Co based | Age Hardened | 350HB | 1180MPa | |
S | 35 | High temperature alloys - Ni / Co based | Cast | 320HB | 1080MPa | |
S | 36 | Titanium & Titanium alloys - CP Titanium | 400MPa | |||
S | 37.1 | Titanium & Titanium alloys - Alpha alloys | 860MPa | |||
S | 37.2 | Titanium & Titanium alloys - Alpha / Beta alloys | Annealed | 960MPa | ||
S | 37.3 | Titanium & Titanium alloys - Alpha / Beta alloys | Age Hardened | 1170MPa | ||
S | 37.4 | Titanium & Titanium alloys - Beta alloys | Annealed | 830MPa | ||
S | 37.5 | Titanium & Titanium alloys - Beta alloys | Age Hardened | 1400MPa | ||
H | 38.1 | Hardened steel | Hardened & Tempered | 45HRC | ||
H | 38.2 | Hardened steel | Hardened & Tempered | 55HRC | ||
H | 39.1 | Hardened steel | Hardened & Tempered | 58HRC | ||
H | 39.2 | Hardened steel | Hardened & Tempered | 62HRC | ||
H | 40 | Cast Iron - Chilled | Cast | 400MPa | 1350MPa | |
H | 41 | Cast Iron | Hardened & Tempered | 55HRC |
Wood | Metal | Specialty | Masonry | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
KEY
Optimal
Effective
PSteel
MStainless
KCast Iron
NNon-Ferous Metals
STitanium & Super Alloys
HHard Materials
